>> Multi-Language: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese
>> VVDI PROG Software: V5.1.2, Firmware: 2.0.0
>> BMW>>VVDI Prog support reading BMW ISN (Recommend BOSH ECU Adapter)
>>VVDI Prog + XDPGSOGL DB15-DB25 Cable work with Xhorse Solder-Free Adapters for VVDI Key Tool Plus and Mini Prog.
Please Note:
1. VVDI Prog Read BMW ISN. Read ECU data and show the ISN automatically
2. DO NOT click firmware upgrade in VVDI Prog software, or it will give communication server error. The firmware is fixed at 2.0 version, no need to update.
3. Please do wiring 100% same like the connection diagram in VVDI Prog software, DO NOT lengthen the connection lines with other parts. Or will fail to read.
4. VVDI PROG User Manual. You can also check in VVDI Prog software folder.
V5.1.2 VVDI Prog Update Info:
V5.1.2 VVDI Prog Update (2022-02-24)
* This version DON’t need update firmware
+ Add AVANCIER(R7F701033)(ADAPTER), BREEZE(R7F701033)(ADAPTER),
CIVIC(R7F701033)(ADAPTER), CRV(R7F701033)(ADAPTER),
VEZEL(D70F3634)(ADAPTER), XRV(D70F3634)(ADAPTER) options in <4-IMMOBILIZER>->
+ Add FOTON KANGRUI-H2 option in <5-DASHBOARD>->
+ Add MAXUS-G10 option in <5-DASHBOARD>->
+ Add AIRBAG E53 MRSZ4/16 option in <7-AIRBAG>->
+ Add RANGE-ROVER-SEAT-MOUDLE option in <8-OTHER>->
+ Add GAYENNE AC MOUDLE, LITHIUM BATTERY MODULE options in <8-OTHER>->
VVDI Prog Features:
1. Built-in update software: Make VVDI Prog update timely.
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
VVDI PROG Programmer Functions:
Support R&W lots of chips, including MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .
Support chip data verify, check blank function
Support data file compare function
Support R&W BMW N20, N55 ECU (show ISN directly)
Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
Lots of connection diagrams
VVDI PROG Support List:
EEPROM&Flash:
ADESTO, AKM, ALTERA, AMD, ATMEL, CATALYST, EON, EXEL, FAIRCHILD, FUJITSU, INTEL, MICROCHIP, MXIC, RAMTRON, ROHM, SEIKO, TOSHIBA, WINBOND, ⅪCoR, YMC.etc
MCU:
RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC(9)08, MOTOROLA MC68HC(9)12, MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F
Support Model List:
ECU List:
For BENZ, BMW E Series, BMW F Series, BOMBARDIER, BOSH, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT
For Ford, Hyundai, KIA, PEUGEOT,SIEMENS, for VOLKSWAGEN, OTHER
IMMOBILIZER List:
For AUDI, BACIMOTOR, BENZ, BMW, BUCIK, CHANGAN, CHEVROLET, FAW, CHRYSLER, FIAT, FORD, GEELY, GREATWALL, HYUNDAI, INFINITI, LANDROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, SSANGYONG, STEC, TUNGTHIH, VOLKSWAGEN, VOLVO, YEMA, ZHONGHUA, ZOYTE .
DASHBOARD List:
For BACIMOTOR, BORGWARD, BUICK, CHANGAN, CHERY, CHEVROLET, DAYUN, DONGFENG, FAW, FORD, GEELY, FOTON, GACMOTOR, GEELY GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, SUZUKI, TOYOTA, VOLOVO, ZHONGHUA, ZOTYE
REMOTE List:
For BMW E Series, BMW F Series
AIRBAG List:
For BENZ, BOSH, BUICK, CHANGAN, Chery, CHEVROLET, Citroen, FAW, Fiat, Ford, GEELY, GM, Halma, HAWTAI, HONDA, Hyundai, JMC, Land Rover, LUXGEN, LYNKCO, Opel, OTHERS, PEUGEOT, Renault, SAICMOTOR, Suzuki, TOYOTA, VOLKSWAGEN, VOLVO, ZOOT
BOSH-ECU-ADATPER List:
For ABARTH, Alfa Romeo, ASTON-MARTIN, AUDI, BENZ, BMW, BUGATTT-VEYRON, CHRYSLER, Citroen, DACIA-LOGAN, Fiat, Ford, GM, HONDA, Hyundai, Infinity, Isuzu, Jaguar, JEEP, KIA, Landrover, MASERATI, ACLAREN, PEUGEOT, SKODA, Suzuki, TOYOTA, VOLKSWAGEN, VOLVO
How to use VVDI Prog Programmer?
1.VVDI Prog Software Interface:
1.1. Operation options
File : Load data file
Buffer : Support copy, paste, search, fill function
Device : Support chip read, write, erase operation
Window : Compare two data files
Setting : Read&Verify, Write&Verify, Erase&Check Blank configuration
Language : Change the language, current support English, Chinese,Polish, Arabic, Czech, Spanish, French, Italian, Portuguese, Russian,Turkish(You can change the language you want.)
1.2. General options: Provide General function buttons, simple and easy for operation, include: new, open, save, read, write, verify, check blank, erase, calculator & upgrade
1.3. Read range: Parts of chips include several data areas, for example EEPROM, FLASH and etc. click on the button select read range
1.4. Data display: Display the read data or load data, include hex and ASCII format
1.5. Power configuration: Display the status of power ( VCC, VPP, 12V), support change the voltage of VCC and VPP (The default voltage usually not need to change)
1.6. Special function options Provide chips special function, for example parts of chips have read chip ID, set security, reset security etc.
1.7. Chip option Select right option according to type,brand and chip
1.8. Option Information: Display parameter information of current option
1.9. Connection diagram button: Click on button, get the connection diagram of current chip
1.10. adapter Type:Display needed adapter of current option
1.11. Operation Information: Display operation information and saved in "log.bin" file
2.How to Update VVDI Prog Programmer?
2.1. Software
Click on the latest download link on the top.
2.2. Firmware
Please note: VVDI Prog firmware is fixed at 2.0 version, No Firmware Update, or it will get server error.
VVDI PROG Reviews:
1. Read MC9s12xdg128 2M42E tonight. Very smooth easy read and verify flash and eeprom.
2. I made pcf reseting with vvdi prog on allot of remotes. It does erase, no problem. It writes no problem.
Thumb's up for the tool. Working good.Only that you need a good dump for the pcf.
3. vvdi prog support R5F21548G, in the 2-MCU,RENESAS-R8C
4. vvdi prog is able to read volvo v50 keyless entry module. Chip is 9s12dg256 OLO1Y
5. VVDI Prog Programmer Test on Different Computer Feedback:
did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing.

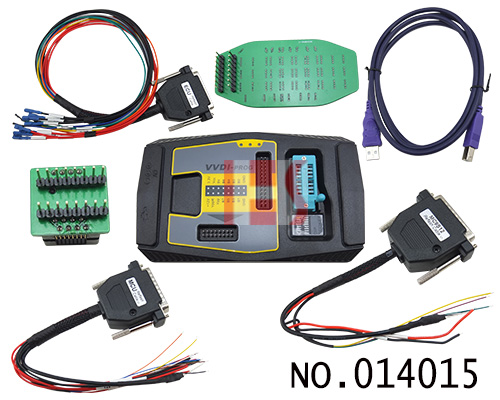

Package List:

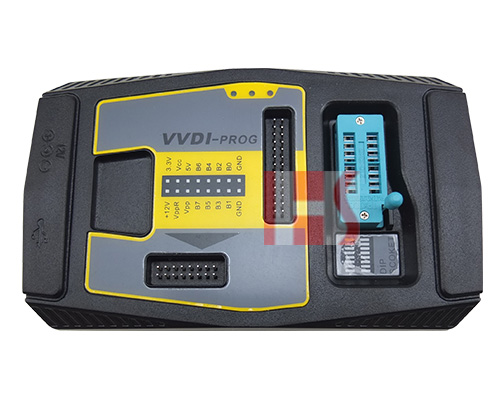

1. VVDI PROG device
2. EEPROM socket
3. EEPROM adapter

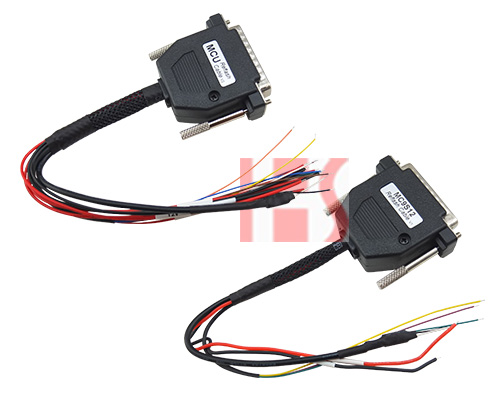

4. MC9S12 Reflash Cable V1
5. MCU Reflash Cable V3

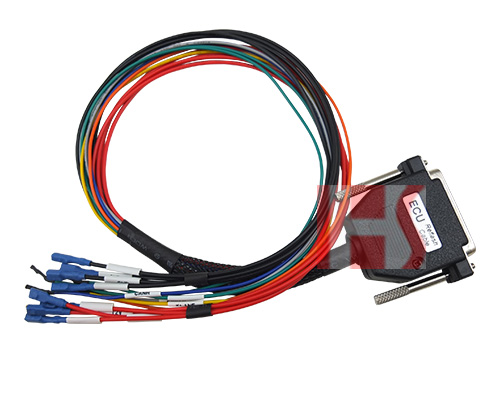

6. ECU Reflash Cable
7. USB Type-B Cable
No CD in package now, please download the newest VVDI Prog software at the top of the page.
|
